Vesta® Seri Tunable White Gen 2 18mm Etalaj, 90 CRI ak ThriveTM
Bridgelux® Vesta® Series Tunable White Gen 2 18mm Array, 90 CRI ak ThriveTM
Dekri teren
Bridgelux® Vesta® Series Tunable White Gen 2 18mm Array, 90 CRI ak ThriveTM

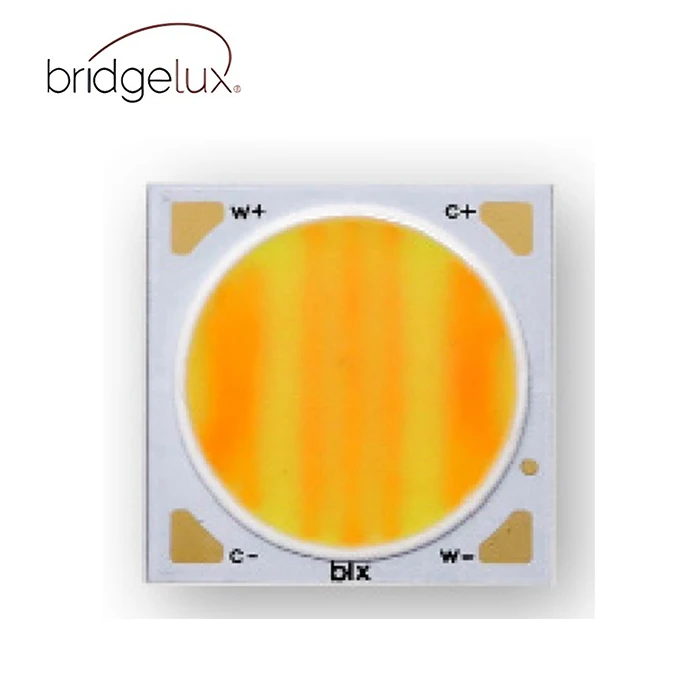

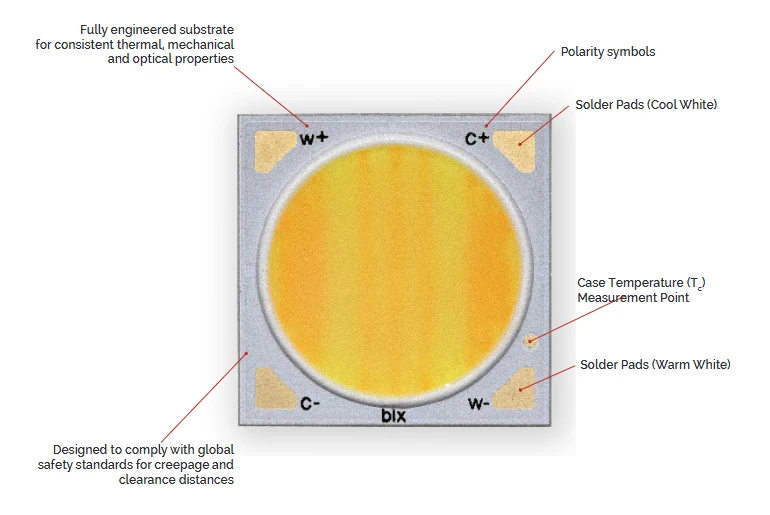

Etalaj Bridgelux yo se aparèy konplètman enjenyè ki bay pèfòmans tèmik ak optik konsistan sou yon platfòm mekanik enjenyè. Etalaj yo enkòpore plizyè karakteristik pou senplifye entegrasyon konsepsyon ak asanble.
|
Fanmi pwodwi |
Pwodwi |
Nimewo Pati |
Nimewo Doc |
LES Size (mm) |
Typ. Flux (lm) |
Si (mA) |
Vf (V) |
Pouvwa (W) |
Efikasite (lm/W) |
Gwosè substrate (mm) |
CCT Range (K) |
CRI |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BXRV Vesta TW | Vesta Tunable White 18A | BXRV-TR-2750G-40A0-A-2x | DS353 | 19.6 | 4150 | 900 | 35.8 | 32.2 | 129 | 24x24 | 2700-5000 | 93 |
| BXRV Vesta TW | Vesta Tunable White 18A | BXRV-TR-2765G-40A0-A-2x | DS353 | 19.6 | 4150 | 900 | 35.8 | 32.2 | 129 | 24x24 | 2700-6500 | 93 |
| BXRV Vesta TW | Vesta Tunable White 18A | BXRV-TR-1840G-40A0-A-2x | DS353 | 19.6 | 4000 | 900 | 35.8 | 32.2 | 124 | 24x24 | 1800-4000 | 93 |
Tablo 1:Gid Seleksyon, Done Mezi
|
Nimewo Pati |
Nominal CCT 1 Tc=85 degre (K) |
Tipik CRI2 Tc=85 degre |
Nominal Kondwi Kouran pou chak chanèl (mA) |
Tipik Vf 3 Tc=25 degre (V) |
Tipik Pouvwa Tc=25 degre (W) |
Tipik Enpulsyonèl Flux 3, 4, 5 Tc=25 degre (lm) |
Tipik Efikasite5 Tc=25 degre (lm/W) |
Minimòm Enpulsyonèl Flux8 Tc=25 degre (lm) |
Tipik DC Flux7, 8 Tc=85 degre (lm) |
|
BXRV-TR-2750G-40A0-A-23 |
2700 |
93 |
900 |
35.2 |
31.7 |
3650 |
115 |
3285 |
3212 |
|
5000 |
92 |
900 |
35.8 |
32.2 |
4150 |
129 |
3735 |
3611 |
|
|
BXRV-TR-2765G-40A0-A-23 |
2700 |
93 |
900 |
35.2 |
31.7 |
3650 |
115 |
3285 |
3212 |
|
6500 |
92 |
900 |
35.8 |
32.2 |
4150 |
129 |
3735 |
3611 |
|
|
BXRV-TR-2750S-40A0-A-23 |
2700 |
98, boujonnen |
900 |
35.2 |
31.7 |
3103 |
98 |
2792 |
2730 |
|
5000 |
98, boujonnen |
900 |
35.8 |
32.2 |
3528 |
109 |
3175 |
3104 |
|
|
BXRV-TR-2765S-40A0-A-23 |
2700 |
98, boujonnen |
900 |
35.2 |
31.7 |
3103 |
98 |
2792 |
2730 |
|
6500 |
98, boujonnen |
900 |
35.8 |
32.2 |
3528 |
109 |
3175 |
3104 |
|
|
BXRV-TR-1840G-40A0-A-2X |
1800 |
92 |
900 |
35.2 |
31.7 |
2630 |
83 |
2367 |
2314 |
|
4000 |
92 |
900 |
35.8 |
32.2 |
4000 |
124 |
3600 |
3480 |
|
|
BXRV-TR-1840S-40A0-A-2X |
1800 |
92 |
900 |
35.2 |
31.7 |
2236 |
71 |
2012 |
1967 |
|
4000 |
98, boujonnen |
900 |
35.8 |
32.2 |
3400 |
106 |
3060 |
2958 |
|
|
BXRV-TR-1830G-40A0-A-2X |
1800 |
92 |
900 |
35.2 |
31.7 |
2600 |
82 |
2340 |
2288 |
|
3000 |
92 |
900 |
35.8 |
32.2 |
3720 |
115 |
3348 |
3236 |
Tablo 2: Tablo pwodwi ki anrejistre nan Rejis pwodwi Ewopeyen an pou etikèt enèji (EPREL)
|
|
CCT (K) |
CRI |
Cur- lwaye 3 (mA) |
Volt- laj 3 (V) |
Itil Flux2 itil Tc=85 degre (lm) |
Pouvwa (W) |
Efikasite (lm/W) |
Enèji Efikasite Klas4 |
Regis- trasyon Non |
|
|
|||||||||
|
BXRV-TR-2750G-40A0-A-23 |
5000 |
90 |
940 |
33.4 |
3726 |
31 |
118 |
E |
876237 |
|
BXRV-TR-2765G-40A0-A-23 |
6500 |
90 |
940 |
33.4 |
3726 |
31 |
118 |
E |
879086 |
|
BXRV-TR-2750S-40A0-A-23 |
5000 |
97 |
280 |
30.6 |
1031 |
9 |
120 |
E |
876387 |
|
BXRV-TR-2750S-40A0-A-23 |
6500 |
97 |
280 |
30.6 |
1031 |
9 |
120 |
E |
854648 |
|
BXRV-TR-1840G-40A0-A-2X |
4000 |
90 |
550 |
31.8 |
2189 |
18 |
125 |
E |
876345 |
|
BXRV-TR-1840S-40A0-A-2X |
4000 |
97 |
220 |
30.2 |
784 |
7 |
117 |
F |
879083 |
Pati Nimewo
Tablo 3:Tipik Endèks Rann Koulè ak Valè TM-30 nan Tc =85 degre
|
Nominal CCT1 |
Rf |
R g |
Ra |
R1 |
R2 |
R3 |
R4 |
R5 |
R6 |
R7 |
R8 |
R9 |
R10 |
R11 |
R12 |
R13 |
R14 |
R15 |
|
2700K |
96 |
99 |
98 |
96 |
98 |
97 |
94 |
96 |
95 |
98 |
98 |
97 |
95 |
91 |
92 |
96 |
97 |
97 |
|
4000K |
95 |
99 |
98 |
99 |
99 |
99 |
98 |
98 |
98 |
97 |
98 |
98 |
98 |
99 |
92 |
98 |
99 |
98 |
|
5000K |
96 |
99 |
98 |
98 |
98 |
98 |
95 |
98 |
96 |
97 |
97 |
95 |
96 |
97 |
91 |
97 |
98 |
96 |
|
6500K |
96 |
99 |
98 |
98 |
98 |
99 |
97 |
98 |
98 |
99 |
98 |
95 |
96 |
98 |
93 |
98 |
99 |
96 |
Tablo 4:Valè tipik ASD nan Tc =85 degre
|
CCT nominal |
ASD |
|
2700K |
11% |
|
4000K |
7% |
|
5000K |
9% |
|
6500K |
8% |
Tablo 5:Karakteristik elektrik
|
Nimewo Pati |
CCT (K) |
Nominal Kondwi Kouran (mA) |
Pi devan Voltage Enpulsyon, T = 25 C 1, 2, 3, 7 |
Tipik Tanperati Koefisyan nan Forward Voltage 4 ∆Vf/∆Tc (mV / degre) |
Tipik Tèmik Rezistans Junction nan Ka 5 (degre /W) |
Seleksyon Chofè Voltages6 |
|||
|
Minimòm (V) |
Tipik (V) |
Maksimòm (V) |
|||||||
|
Vf Min. Cho Tc = 105 degre (V) |
Vf Max. Fwad T = -40 degre (V) |
||||||||
|
BXRV-TR-xxxxX-40A0-A-2X |
1800, 2700 |
900 |
33.1 |
35.2 |
37.3 |
-11.5 |
0.35 |
32.2 |
38.1 |
|
3000, 4000 5000, 6500 |
900 |
33.7 |
35.8 |
37.9 |
-11.6 |
32.7 |
38.7 |
||
Tablo 6: Evalyasyon maksimòm
|
Paramèt |
Maksimòm Rating |
|
Tanperati Junction ki ap dirije (Tj) |
125 degre |
|
Tanperati Depo |
-40 degre a +105 degre |
|
Tanperati ka opere 1 (Tc) |
105 degre |
|
Tanperati soude 2 |
350 degre oswa pi ba pou yon maksimòm de 6 segonn |
|
Maksimòm Kouran Kondwi Konbine 3, 4 |
1400mA |
|
Maksimòm kouran enpulsyonèl kondwi 5 |
1680mA pou 1800K/2700K, 1440mA pou 3000K/4000K5000K/6500K |
|
Maksimòm pouvwa total |

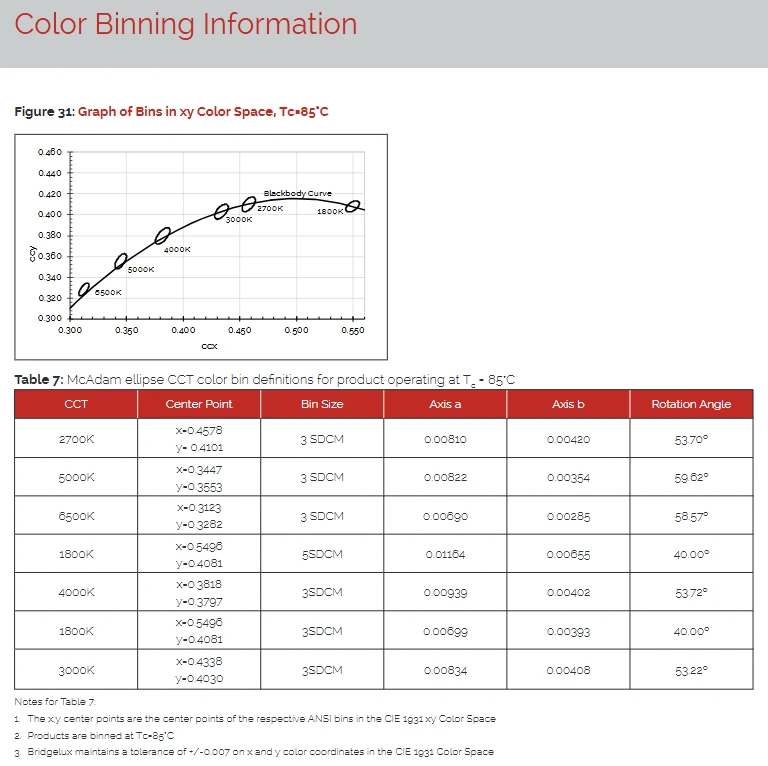

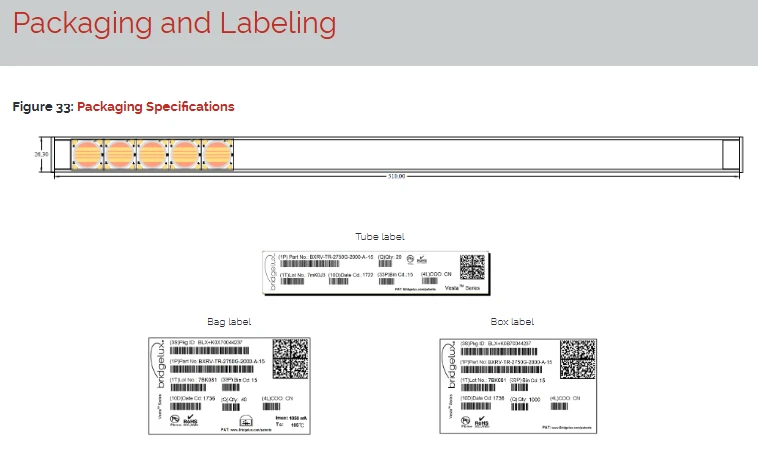

49W |
